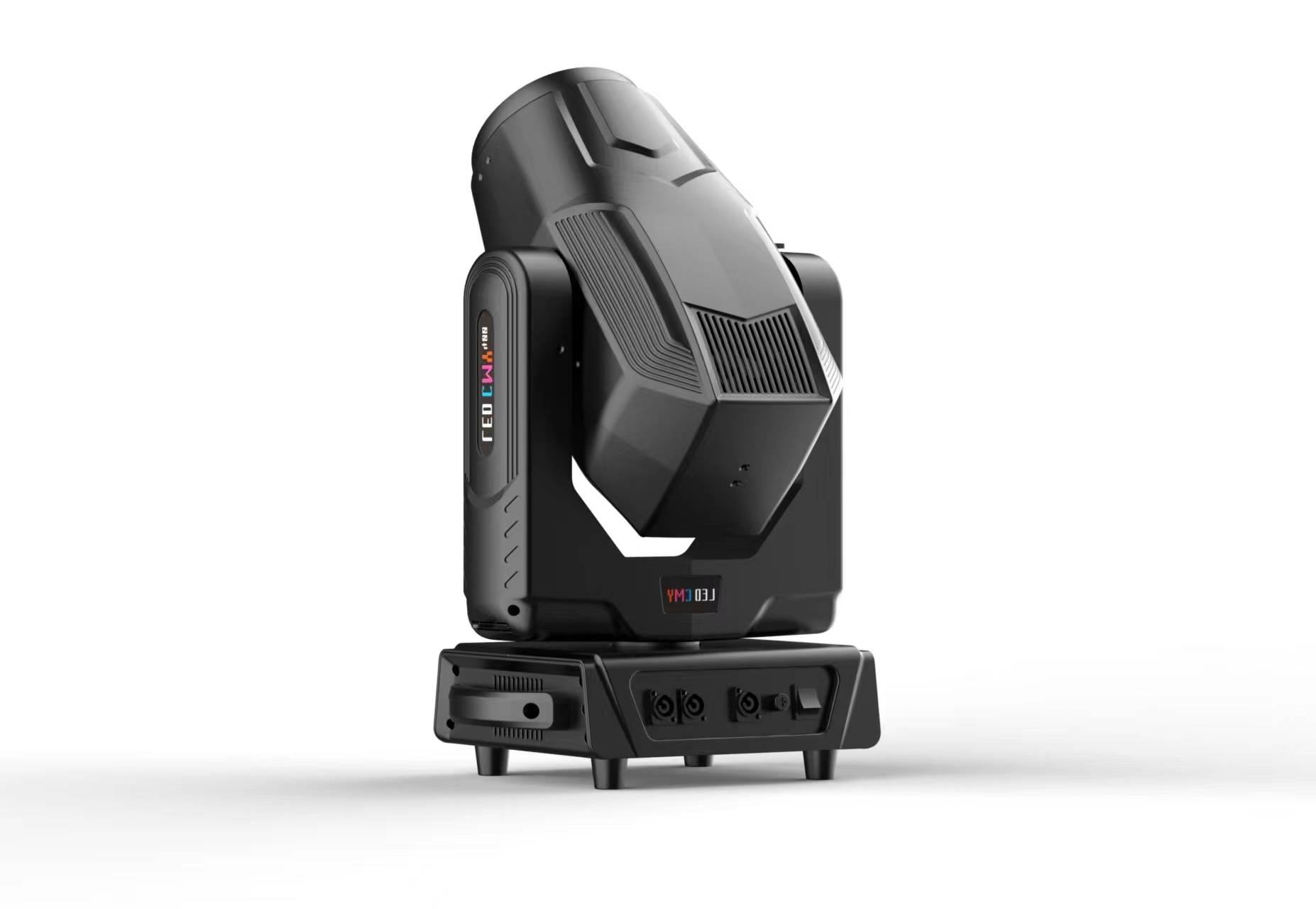

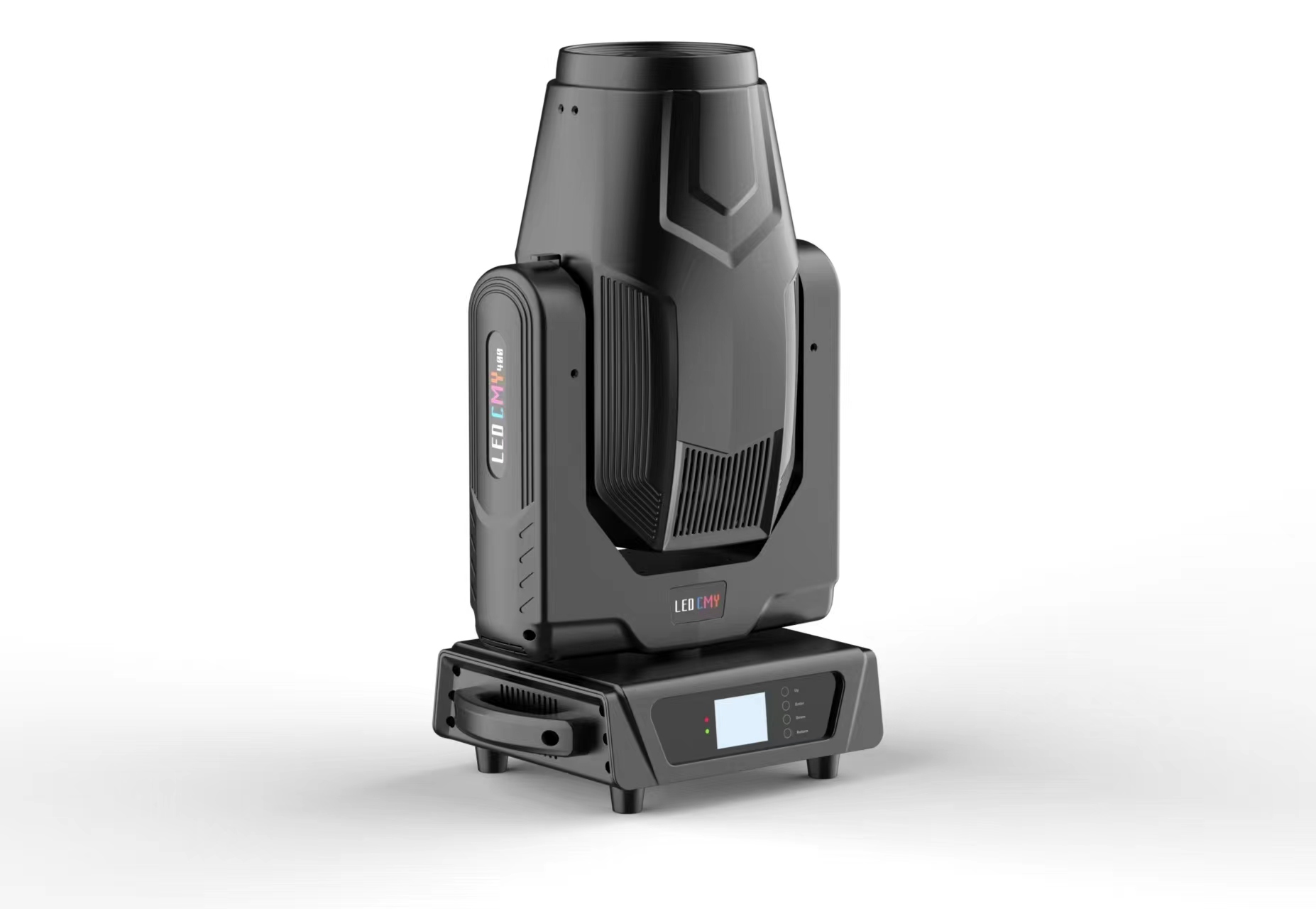

LED 600W Beam & Spot & Wash Light
Parameter
Size
Detail
Effect light
Projection
Video
Application
Rated power: 600W
Input voltage: AC90V-240V/50-60HZ.
Specification of light source: ECO 500-80-R00-000
Color temperature: 7500K color rendering index: 75
Life of light source: 20,000 hours
Lumen illumination: 4m 120,000lm
Light exit aperture: 138MM
Channel mode: 23/19 channels
Horizontal scanning: 540 degrees (16-bit precision scanning) electronic error correction.
Vertical scanning: 270 degrees (16-bit precision scanning) electronic error correction.
Dimming system: 0-100% linear adjustment
Focusing system: linear adjustment from 4m to 50m.
Atomization system: 1 independent atomization effect, soft and natural light spot.
Zooming angle: the light beam is 2.7 ~ 40, and the dyeing pattern is 4-40, and 4-40.
High-speed strobe: 0-30 times per second. Adjustable speed strobe effect. Strobe macro function.
Color: 8 colors+white light. Half color function.
Color system: 8 colors +CTO color mixing system.
Fixed patterns: 12 fixed patterns+white light
Rotation pattern: 7 glass patterns, each of which can be reversed independently.
Prism system: Single 4-row prism and 4-prism are standard, and each prism can be independently reversed.
Macro function: console reset function, self-propelled mode, master-slave mode.
Display mode: LCD display, key+touch dual operation mode.
Control signal: international standard DMX512. With RDM function, you can upgrade the software online and dial the address code.
Cooling mode: axial fan is used to strengthen cooling.
Safety device: with electronic temperature control and overheating protection, and electronic temperature control and automatic power-off protection when the overheating system fails.
Appearance material: high temperature resistant plastic
Working environment: -20 degrees, 40 degrees.
Protection grade: IP20
Product net weight: 23KG
Product size: 38*27*65CM (L*W*H)
Paper bag size: 54*45*61CM, total weight 27KG.
Airbox with one container and two dimensions: 73*50*88CM with total weight of 77KG.
